WD4A - Validate Inputs in a web dynpro ABAP Application

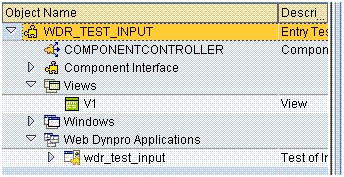

 - The structure of web dynpro component is shown below.

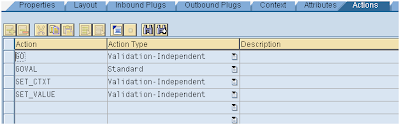

Actions created in View V1 are shown below.





Implementation of each action created above is written below.
method onactiongo .* implicitly available data objects
*   wd_Context type ref to if_wd_context_node.
*   wd_This    type ref to if_v1.
data: message_node type ref to if_wd_context_node.data: input_node type ref to if_wd_context_node,
      text_area_input
type string.

input_node = wd_context->get_child_node(
'NODE1' ).

message_node = wd_context->get_child_node(
'MESSAGES' ).

message_node->invalidate( ).
endmethod.
-----------------------------------------------------------------------------
method onactiongoval .* just default handling
endmethod.
-----------------------------------------------------------------------------
method onactionset_ctxt .

data: node_1 type ref to if_wd_context_node.

  node_1 = wd_context->get_child_node(
'NODE1' ).
  node_1->set_attribute( name =
'DATE' value = '20041225' ).endmethod.
-----------------------------------------------------------------------------
method onactionset_value .
  wd_this->correct_value =
'ABC'.endmethod.


Methods Created in Component Controller are shown below.












Implementation of each method shown above is written below.-----------------------------------------------------------------------------
method supply_messages .


data:   context type ref to if_wd_context,

component type ref to if_wd_component,
          exception_manager
type ref to cl_wdr_message_manager,
          context_is_valid
type abap_bool.

data:   text1 type          if_v1=>element_messages,
          texts
type table of if_v1=>element_messages,
          messages
type string_table.


component = wd_comp_controller->wd_get_api( ).
  exception_manager ?=
component->get_message_manager( ).
  context = wd_context->get_context( ).
  context_is_valid = exception_manager->if_wd_validation~is_context_valid(
                              context = context ).

if context_is_valid = abap_false.
    messages = exception_manager->if_wd_validation~get_messages_for_context(
                              context = context ).

loop at messages into text1-text.

append text1 to texts.

endloop.
    node->bind_elements( texts ).

endif.endmethod.
-----------------------------------------------------------------------------
method supply_multinode .** data declaration

data:
    itab_multinode
type if_v1=>elements_multinode,
    stru_multinode
like line of itab_multinode.** @TODO compute values
** e.g. call a data providing FuBa

call method cl_wd_flight_model=>get_sflight_by_carrid

exporting
      i_carrid   =
''

importing
      et_sflight = itab_multinode.
*
** bind all the elements
  node->bind_table(
    new_items =  itab_multinode
    set_initial_elements = abap_true ).
endmethod.
-----------------------------------------------------------------------------
method supply_node2 .data: flight type if_v1=>element_node2.

flight-price =
'12.34'.
flight-
currency = 'EUR'.

node->bind_structure( flight ).
endmethod.

This is how the output will look like.
